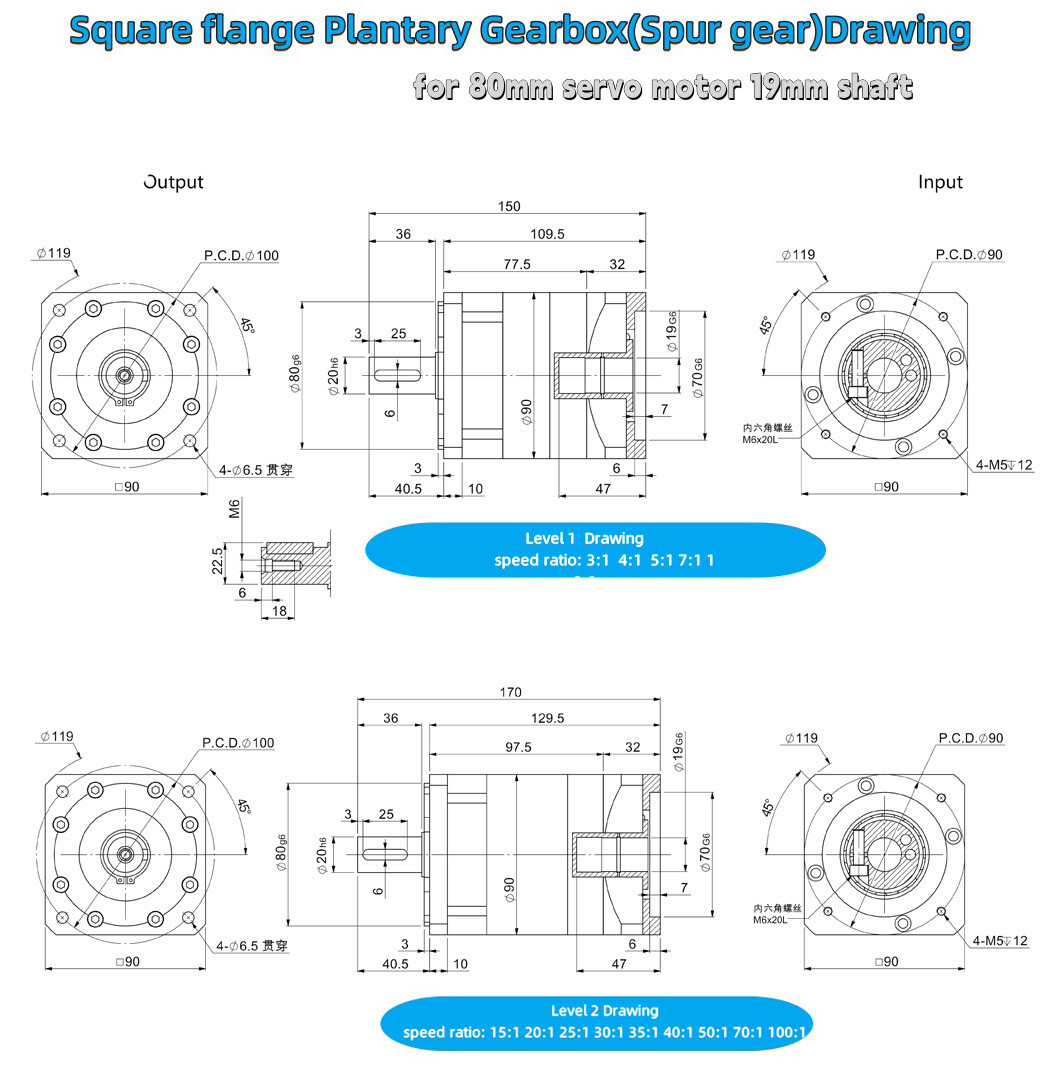

Precision Planetary Gearbox Reducer 7arc-min for AC 80mm Servo motor 19mm input

Description This high-quality planetary gearbox speed reducer gear head is a reliable and efficient choice for a variety of applications. With 20mm output shaft, 19mm input it is suitable for use with AC 80mm stepper motor. Designed for use in office/home/production automation and consumer electronics, this gearbox offers high precision with less than 7 arcmin accuracy and a wide range of nominal ratios including 3:1, 5:1, 10:1, 20:1, 50:1, and 100:1. This gearbox is an excellent choice for anyone in need of a reliable and efficient speed reducer for their automation or motion control needs. Main Product Advantage ✅high efficiency ✅ high rigidity ✅ high bearing capacity ✅ Low-noise operationPrecision Planetary Gearbox Reducer 7arc-min for AC 80mm Servo motor 19mm input DescriptionThis high-quality planetary gearbox speed reducer gear head is a reliable and efficient choice for a variety of applications. With 20mm output shaft, 19mm input it is suitable for use with AC 80mm stepper motor. Designed for use in office/home/production automation and consumer electronics, this gearbox offers high precision with less than 7 arcmin accuracy and a wide range of nominal ratios including 3:1, 5:1, 10:1, 20:1, 50:1, and 100:1. This gearbox is an excellent choice for anyone in need of a reliable and efficient speed reducer for their automation or motion control needs. Main Product Advantage✅high efficiency✅high rigidity✅high bearing capacity✅Low-noise operation⏺The output planetary turntable adopts an integrated type (double support) to ensure stability, high torque rigidity and precision.⏺ The ring gear is formed by integrated design, and the high-quality high-density alloy steel ensures higher concentricity, precision and strength(Using high-precision spur gears, Backlash is as low as 7 arc-min)⏺ The input shaft is integrated with the locking device, and the symmetrical distribution achieves dynamic balance and strong locking, preventing the shaft transmission from slipping, and realizing high-precision zero-gap power transmission⏺ The surface of the shaft is matched with the oil seal to ensure a low coefficient of friction, reduce the starting load, maintain good sealing, and prolong the service life⏺ It can be applied to robots, manipulators, spring machinery, CNC machine tools, printing and packaging machinery,Military, aviation equipment, textile machinery, food machinery, etcPackage list1x Planetary reducer(19mm input)1x Key4x Install screws Technical Parameter Straight Gear Planetary ReducePLF090Max. Output TorqueNm1.5 Times Rated Output TorqueInstant Braking TorqueNm2 Times Rated Output TorqueMax Radial TorqueN450Max Axis TorqueN430Torsional StiffnessNm/arcmin4.85Max Input Speedrpm6000Rated Input Speedrpm3500NoisedB≤60Life timeh20000Full Load Efficiency%L1≥96%, L2≥94%BacklashPOL1arcmin≤7L2arcmin≤12 Moment of InertiaL13:1Kg.cm21.734:1Kg.cm21.735:1Kg.cm21.737:1Kg.cm21.4210:1Kg.cm21.42L215:1Kg.cm21.4920:1Kg.cm21.4925:1Kg.cm21.4930:1Kg.cm21.4935:1Kg.cm21.4940:1Kg.cm21.4950:1Kg.cm21.4970:1Kg.cm21.25100:1Kg.cm21.25 ParameterStageRatioPLF090Rated Output Torque (Nm)L13:1964:11225:11227:19510:156L215:19620:112225:112230:19635:112240:112250:112270:195100:156IP DegreeIP65Operating Temp-10℃~~90℃ Drawing PaymentDelivery detailsTerms of salesAbout usContact usPayment1. All payments must be prepaid.2. We accept multiple payment.Delivery details1. We'll pay for export custom tax,Buyer should pay for import custom tax if needed.2. packages will be sent out within the same day or 1 working days after the payment is received.3. Order placed on the weekends will be shipped out on next Monday or Tuesday (holiday excluded).4. Local pickup is not available.5. We regret that we can not be responsible for any wrong or undeliverable addresses.Terms of sales1.We automatically submit positive feedback to our buyer once the payment is cleared.2. if you are satisfied with our product, please do the same for us, leave Positive Feedback with Four 5-star DSR (Detailed Selling Rating)for us, which means a lot to us, thanks in advance.3. PleaseDo not leave Negative orNeutral Feedback before Contacting us, leave negative feedback and argue can not solve any problem and we will work with you to resolve those problem.4. For any problem you have met about the product, please feel free to contact us viaEbay Message or E-mail.We always reply messageswithin One business day, butexcept holidays.About usReturn & Warranty:1. We guarantee against any defective products.2. We provide 30 days money back on non-defective, undamaged, unused and resalable products. Restocking fee and other fee may apply upon the condition of returned products. Shipping and handling fees are non-refundable.3. For any returned product, please contact us through ebay message first, We will work on resolving your particular case ASAP.Contact usAny question please feel free to contact us, we will respond within 1 bussiness day or less, except holidays.On Feb 6, 2025 at 19:31:34 PST, seller added the following information:.dc_tracker_img .dc_tracker_img:last-of-type p:empty+hr hr+span.ebay,hr+*>span.ebay
