2pcs IC L298 L298N ST ZIP-15 DUAL FULL BRIDGE MOTOR DRIVER

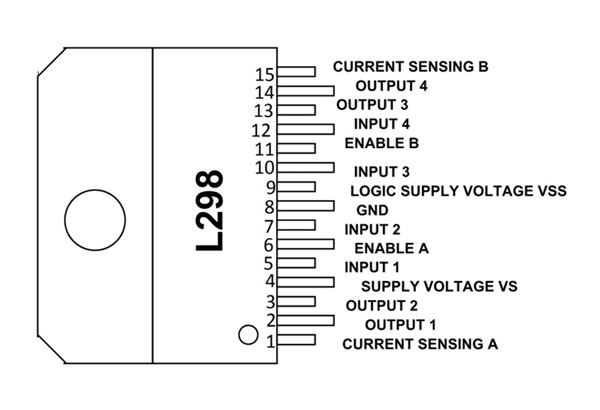

The L298 is an integrated monolithic circuit in a 15-lead multiwatt and PowerSO-20 packages. It is a high-voltage, high-current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors. L298N is a high power version of L293 motor driver IC. It is a high voltage, high current, dual full-bridge driver designed to accept standard TTL logic levels (Control Logic) and drive inductive loads such as relays, solenoids, DC and Stepper motors. Two enable inputs are provided to Enable or disable the device independently of the input signals. The emitters of the lower transistors of each bridge are connected together and the corresponding external terminal can be used for the connection of an external sensing resistor. Key features Operating supply voltage up to 46 V. Total dc current up to 4 A. Low saturation voltage. Overtemperature protection. Logical 0 input voltage up to 1.5 V (high noise immunity). Features and Specifications - Operating voltage range: +5 to +46V - Maximum supply voltage: 50V - Maximum Input and Enable Voltage: +7V - Maximum current allowed to draw through each output: 3A - TTL control inputs - Total power dissipation: 25W - Operating temperature: -23°C to 130°C - Storage Temperature: -40°C to 150°C Package Included: 2pcs IC L298 L298N ST ZIP-15 DUAL FULL BRIDGE MOTOR DRIVER
