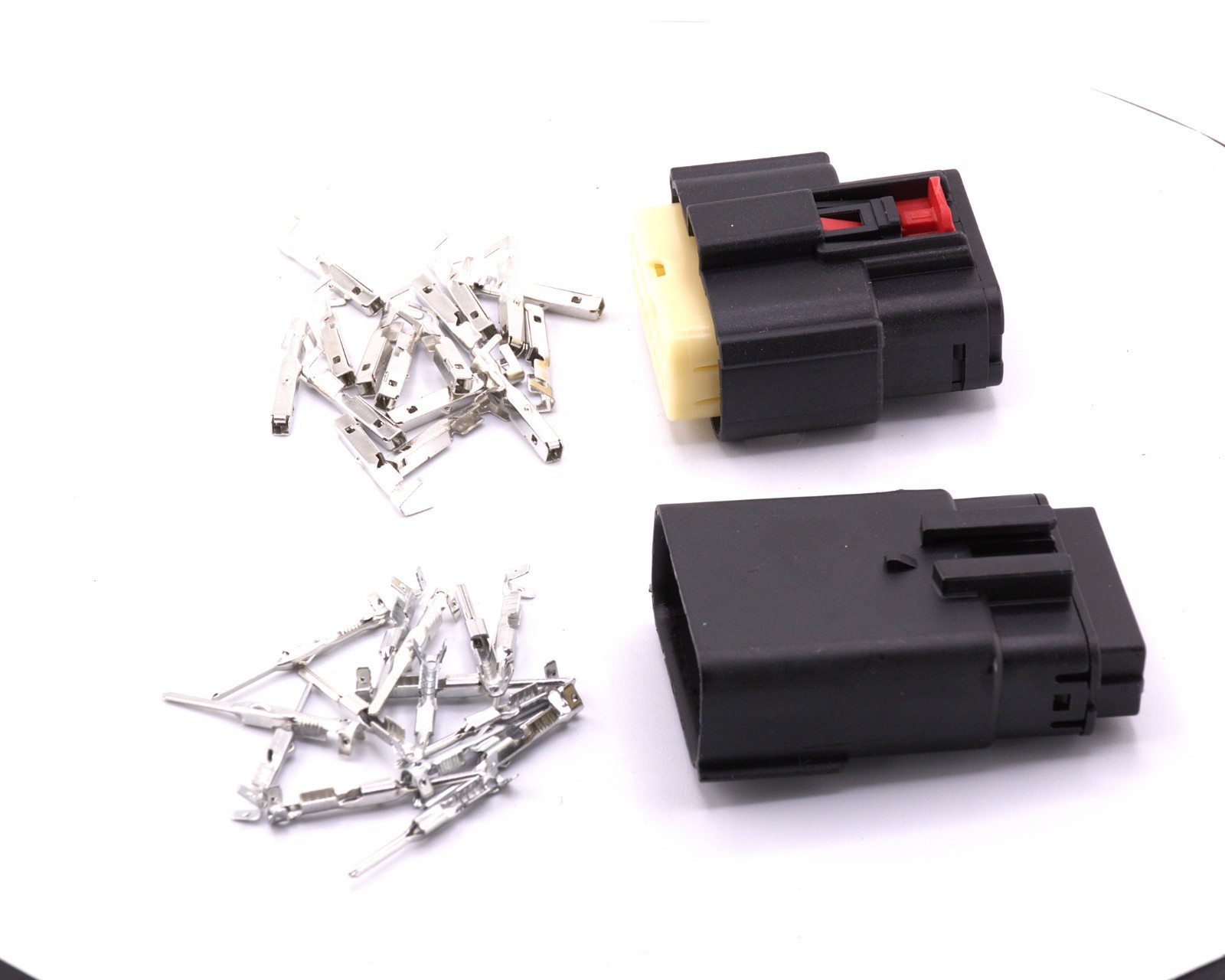

16‑Pin Waterproof Electrical Connector Kit – GM Engine Harness, Modules & Lights

@media only screen and (min-width: 920px) } @media only screen and (max-width: 920px) > div img } body table,td,tr p .ie-container table,.mso-container table * a[x-apple-data-detectors=true] @media (min-width: 0px) } @media (max-width: 480px) } @media (min-width: 481px) } table, td a li a:hover Lamp Sockets Pigtails Grounding Fuses Fuse Blocks Sealed 16‑Pin Connector Kit – GM ECU Modules, Lighting Systems & Engine Harness Features & Benefits Heavy‑duty 16‑pin dual‑row connector with CPA lock. Sealed to IP6K7/IP6K9K for water and dust protection. Operating range –40 °C to +125 °C. Pitch 3.5mm, max insulation diameter 2.54mm. High‑performance alloy contacts for durability. Compatible with 22–12 AWG wire sizes. Meets EU RoHS compliance standards. Compatibility: Designed for heavy‑duty wiring in off‑road, ATV, UTV, marine, RV, truck, bus, trailer, motorcycle, and automotive applications. Supports winch controls, ECU connections, LED light bars, brake/signal lights, and custom harness builds. Specifications Configuration: 16‑pin dual‑row housing Seal Rating: IP6K7 / IP6K9K (water & dust proof) Operating Range: –40 °C to +125 °C Pitch: 3.5mm Max Insulation Diameter: 2.54mm Contact Material: High‑Performance Alloy (HPA) Wire Compatibility: 22–12 AWG Locking System: Integrated CPA lock with seal system Compliance: Meets EU RoHS standards Kit includes 1 × 16‑pin male housing (black). 1 × 16‑pin female housing (black). 16 × male crimp terminals. 16 × female crimp terminals. Integrated CPA and seal system. Stocked in California warehouse Backed by 99.8% positive feedback from 51,000+ reviews Free shipping with tracking included, secure delivery and easy returns Packed 1 “Kit” per package / 10% discount on 2+ packs Product Specs Country of Origin: ChinaOperating Temperature: -40C to 125CHeat Shrink Ratio: NAColor: BlackMaterial: PlasticMPN: NAItem Length: 1 ftCalifornia Prop 65 Warning: NABrand: ATIType: SealedUnit Type: UnitNumber of Ports: 16 a 7-Wire Headlight Female Connector Plug 2005-2011 Lincoln Town Car 2007-2015 MKX $20.79 NMO Mount Antenna Rubber Gaskets Car Audio Marine Autobody 10 per Package $10.95 Waterproof 16-Pin Molex type Female Wired Connector Harness Lights, ABS, ECU $23.79 2 Pack MEGA Style Fuse Block Holder 60A–300A 12-24V High Current w/ Fuse & Cover $23.5 Silicone Rubber Hole Plugs – 12 Sizes, 15/Pack – Auto Dash, Firewall, Trunk Seal $12.19 Side Lamp Bulb Socket VW T4 Transporter 1990–2003, 191941669A Equivalent – 2 Pc $14.95 Aluminum Mechanical Lug 2 AWG Dual Rated 2-Port for Industrial Electronics $16.29 6 Position 25A - 10AWG Dual Row HD Terminal Block Strip w/ Cover + Jumpers $13.79 1/4" ID x 1 1/4" OD x 1/16" XL Rubber Flat Washers Autobody Fender Washers $11.79 Rubber Panel Plug, Knockout Plug, Fits 1/16” Panel, 6 Sizes 10 per Pack $10.88 1 1/8" Auto & Truck Bumper Plugs Black Sensor Hole Covers 10 per pack $13.38 1/4” x 1/8" x 3/8" Push-In Rubber Step Bushings Motorcycles Auto Electronics $13.91 .suggested-template) @media only screen and (min-width: 600px) } @media only screen and (max-width: 600px) } .suggested-template):hover .suggested-template) .suggested-template) .suggested-template) .suggested-template) .suggested-template) .suggested-template) Add suggested items to your listings - Check it out on 3Dsellers.com label.tds-tabs__item:hover ShippingPaymentReturnsWe ship every day Monday - Friday.PayPal is the preferred payment method.We hope you will love your purchase, however if you need to return it, we have a 60 day return policy.We hope you will love your purchase, however if you need to return it, we have a 60 day return policy.We hope you will love your purchase, however if you need to return it, we have a 60 day return policy.We hope you will love your purchase, however if you need to return it, we have a 60 day return policy.We hope you will love your purchase, however if you need to return it, we have a 60 day return policy.We hope you will love your purchase, however if you need to return it, we have a 60 day return policy. > input[type="radio"]:nth-child(1):checked ~ , > input[type="radio"]:nth-child(2):checked ~ , > input[type="radio"]:nth-child(3):checked ~ , > input[type="radio"]:nth-child(4):checked ~ , > input[type="radio"]:nth-child(5):checked ~ , > input[type="radio"]:nth-child(6):checked ~ , > input[type="radio"]:nth-child(7):checked ~ , > input[type="radio"]:nth-child(8):checked ~ , > input[type="radio"]:nth-child(9):checked ~ , > input[type="radio"]:nth-child(10):checked ~ , > input[type="radio"]:nth-child(11):checked ~ , > input[type="radio"]:nth-child(12):checked ~ Featured Products · All Rights Reserved to My Store · eBay listing template by 3Dsellers.com - Try for Free!
